D1~4mm

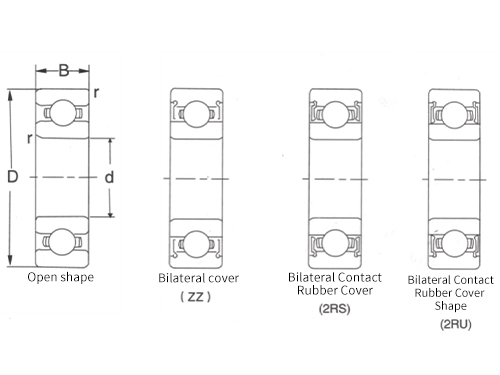

| Dimensioni pRincipali (mm) | Tappo in gomma | Tappo in feRRo | MoDellolo | Coefficiente Di caRico Dinamico Di base | Coefficiente Di caRico statico Di base | Peso di RifeRimento(g) | |||||||
| d | D | B | r | B1 | r1 | Aprire | Tappo in ferro | Tappo di contatto | Senza contatto | Cr(N) | Mais) | Aprire | Tipo di copertura in gomma Tipo con cappuccio in ferro |
| 1 | 3 | 1.0 | 0.05 | 1.5 | 0.05 | 681 | 681ZZ | / | / | 80 | 23 | 0.08 | |
| 3 | 1.5 | 0.05 | / | / | MR31 | / | / | / | 80 | 23 | 0.07 | ||
| 4 | 1.6 | 0.10 | 2.3 | 0.10 | 691 | 691ZZ | / | / | 140 | 36 | 0.10 | ||
| 1.2 | 4 | 1.8 | 2.50 | 0.1 | 0.10 | MR41X | MR41XZZ | / | / | 138 | 35 | 0.10 | 0.14 |
| 1.5 | 4 | 1.2 | 0.05 | 2.0 | 0.05 | 68/1.5 | 68/1,5ZZ | / | / | 112 | 33 | 0.07 | 0.11 |
| 5 | 2.0 | 0.15 | 2.6 | 0.15 | 69/1.5 | 69/1,5ZZ | / | / | 240 | 69 | 0.17 | 0.19 | |
| 6 | 2.5 | 0.15 | 3.0 | 0.15 | 60/1,5 | 60/1,5ZZ | / | / | 330 | 99 | 0.31 | 0.36 | |
| 2 | 4 | 1.2 | 0.05 | 2.0 | 0.06 | 672 | 672ZZ | / | / | 104 | 37 | 0.10 | 0.14 |
| 5 | 1.5 | 0.08 | 2.3 | 0.08 | 682 | 682ZZ | / | / | 188 | 59 | 0.12 | 0.17 | |
| 5 | 2.0 | 0.10 | 2.5 | 0.10 | MR52 | MR52ZZ | / | / | 188 | 59 | 0.16 | 0.22 | |
| 6 | 2.3 | 0.15 | 3.0 | 0.15 | 692 | 692ZZ | / | / | 330 | 99 | 0.28 | 0.38 | |
| 6 | 2.5 | 0.15 | 2.5 | 0.15 | MR62 | MR62ZZ | / | / | 330 | 99 | 0.28 | 0.33 | |
| 7 | 2.5 | 0.15 | 3.0 | 0.15 | MR72 | MR72ZZ | / | / | 385 | 128 | 0.43 | 0.47 | |
| 7 | 2.8 | 0.15 | 3.5 | 0.15 | 602 | 602ZZ | / | / | 385 | 128 | 0.51 | 0.58 | |
| 2.5 | 5 | 1.5 | 0.08 | / | / | 67/2.5 | 67/2,5ZZ | / | / | 153 | 59 | 0.11 | 0.11 |
| 6 | 1.8 | 0.08 | 2.3 | 0.08 | 68/2.5 | 68/2,5ZZ | / | / | 209 | 73 | 0.23 | 0.29 | |
| 7 | 2.5 | 0.15 | 2.6 | 0.08 | 69/2.5 | 69/2,5ZZ | / | / | 385 | 128 | 0.40 | 0.55 | |
| 8 | 2.5 | 0.20 | 3.5 | 0.15 | MR82X | MR82XZZ | / | / | 560 | 179 | 0.52 | ||
| 8 | 2.8 | 0.15 | / | / | 60/2,5 | 60/2,5ZZ | / | / | 550 | 175 | 0.63 | 0.83 | |
| 3 | 6 | 2.0 | 0.08 | 4.0 | 0.15 | 673 | 673ZZ | / | / | 209 | 73 | 0.19 | 0.28 |
| 7 | 2.0 | 0.10 | 2.5 | 0.08 | 683 | 683ZZ | / | / | 385 | 129 | 0.32 | 0.43 | |
| 8 | 2.5 | 0.15 | 3.0 | 0.10 | MR83 | / | / | / | 560 | 179 | 0.51 | ||
| 8 | 3.0 | 0.15 | 4.0 | 0.15 | 693 | 693ZZ | / | / | 56 | 179 | 0.61 | 0.83 | |
| 9 | 2.5 | 0.20 | 4.0 | 0.15 | MR93 | MR93ZZ | / | / | 640 | 226 | 0.68 | 1.18 | |
| 9 | 3.0 | 0.15 | 5.0 | 0.15 | 603 | 603ZZ | / | 640 | 226 | 0.84 | 1.20 | ||
| 10 | 4.0 | 0.15 | 4.0 | 0.15 | 623 | 623ZZ | / | / | 615 | 226 | 1.65 | 1.66 | |
| 13 | 5.0 | 0.20 | 5.0 | 0.20 | 633 | 633ZZ | / | / | 1300 | 485 | 3.38 | 3.33 | |
| 4 | 7 | 2.0 | 0.08 | 2.5 | 0.08 | 674 | 674ZZ | / | / | 315 | 115 | 0.21 | 0.29 |
| 8 | 2.0 | 0.15 | 3.0 | 0.10 | MR84 | MR84ZZ | / | / | 395 | 140 | 0.33 | 0.56 | |
| 9 | 2.5 | 0.10 | 4.0 | 0.10 | 684 | 684ZZ | / | / | 640 | 226 | 0.63 | 1.01 | |
| 10 | 3.0 | 0.20 | 4.0 | 0.15 | MR104 | MR104ZZ | / | / | 650 | 236 | 0.95 | 1.33 | |
| 11 | 4.0 | 0.15 | 4.0 | 0.15 | 694 | 694ZZ | 694-2RS | 694-2RU | 715 | 283 | 1.70 | 1.75 | |
| 12 | 4.0 | 0.20 | 4.0 | 0.20 | 604 | 604ZZ | 604-2RS | 604-2RU | 970 | 360 | 2.25 | 2.29 | |
| 13 | 5.0 | 0.20 | 5.0 | 0.20 | 624 | 624ZZ | 624-2RS | 624-2RU | 1300 | 485 | 2.97 | 3.04 | |
| 16 | 5.0 | 0.30 | 5.0 | 0.30 | 634 | 634ZZ | 634-2RS | 634-2RU | 1740 | 670 | 5.00 | 5.21 | |
diametro 5~15 mm
| Dimensioni principali (mm) | Tappo in gomma | Tappo in ferro | Modellololololo | Coefficiente di carico dinamico di base | Coefficiente di carico statico di base | Peso di riferimento(g) | |||||||
| d | D | B | r | B1 | r1 | Aprire | Tappo in ferro | Tappo di contatto | Senza contatto | Cr(N) | Mais) | Aprire | Tipo di copertura in gomma Tipo con cappuccio in ferro |
| 5 | 8 | 2.0 | 0.08 | 2.5 | 0.08 | 675 | 675 ZZ | / | / | 278 | 131 | 0.25 | 0.34 |
| 9 | 2.5 | 0.15 | 3.0 | 0.15 | MR95 | MR95ZZ | / | / | 435 | 168 | 0.48 | 0.54 | |
| 10 | 3.0 | 0.15 | 4.0 | 0.15 | MR105 | MR105ZZ | / | / | 435 | 168 | 0.90 | 1.29 | |
| 11 | 3.0 | 0.15 | 5.0 | 0.15 | 685 | 685 ZZ | 685-2RS | 685-2RU | 715 | 283 | 1.20 | 1.95 | |
| 13 | 4.0 | 0.20 | 4.0 | 0.20 | 695 | 69522 | 695-2RS | 695-2RU | 1080 | 430 | 2.40 | 2.5 | |
| 14 | 5.0 | 0.20 | 5.0 | 0.20 | 605 | 605ZZ | 605-2RS | 605-2RU | 1330 | 505 | 3.54 | 4 | |
| 16 | 5.0 | 0.30 | 5.0 | 0.30 | 625 | 625ZZ | 625-2RS | 625-2RU | 1730 | 670 | 4.95 | 6 | |
| 19 | 6.0 | 0.30 | 6.0 | 0.30 | 635 | 63522 | 635-2RS | 635-2RU | 2620 | 1060 | 8.53 | 9 | |
| 6 | 10 | 2.5 | 0.10 | 3.0 | 0.10 | 675 | 675 ZZ | / | / | 495 | 219 | 0.53 | 0.9 |
| 12 | 3.0 | 0.20 | 4.0 | 0.15 | MR126 | MR126ZZ | / | / | 715 | 292 | 1.20 | 1.6 | |
| 13 | 3.5 | 0.15 | 5.0 | 0.15 | 686 | 686ZZ | 686-2RS | 686-?RU | 1080 | 440 | 1.90 | 2.5 | |
| 15 | 5.0 | 0.20 | 5.0 | 0.20 | 696 | 696ZZ | 696-2RS | 696-2RU | 1740 | 670 | 3.79 | 3.9 | |
| 17 | 6.0 | 0.30 | 6.0 | 0.30 | 606 | 606ZZ | 606-2RS | 606-2HU | 2260 | 840 | 5.94 | 6 | |
| 19 | 6.0 | 0.30 | 6.0 | 0.30 | 626 | 62622 | 626-2RS | 626-2RU | 2620 | 1060 | 7.97 | 8 | |
| 22 | 7.0 | 0.30 | 7.0 | 0.30 | 636 | 636ZZ | 6362RS | 636-2RU | 3300 | 1360 | 13.00 | 13 | |
| 7 | 11 | 2.5 | 0.10 | 3.0 | 0.10 | 677 | 67722 | / | / | 455 | 201 | 0.59 | 0.71 |
| 13 | 3.0 | 0.20 | 4.0 | 0.15 | MR137 | MR137ZZ | / | / | 830 | 375 | 1.50 | 1.98 | |
| 14 | 3.5 | 0.15 | 5.0 | 0.15 | 687 | 687ZZ | 687-2RS | 687-2RU | 1170 | 510 | 2.00 | 2.97 | |
| 17 | 5.0 | 0.30 | 5.0 | 0.30 | 697 | 697ZZ | 697-2RS | 697-2RU | 1610 | 715 | 4.80 | 5.01 | |
| 19 | 6.0 | 0.30 | 6.0 | 0.30 | 607 | 607ZZ | 607-2RS | 607-2RU | 2620 | 1060 | 7.67 | 8 | |
| 22 | 7.0 | 0.30 | 7.0 | 0.30 | 627 | 627ZZ | 627-2RS | 627-2RU | 3300 | 1360 | 12.00 | 12 | |
| 26 | 9.0 | 0.30 | 9.0 | 0.30 | 637 | 637ZZ | 637-2RS | 637-2RU | 4000 | 1580 | 24.00 | 25 | |
| 8 | 12 | 2.5 | 0.10 | 3.5 | 0.10 | 678 | B7822 | / | / | 535 | 271 | 0.70 | 0.95 |
| 14 | 3.5 | 0.20 | 4.0 | 0.15 | MR148 | MR148ZZ | / | / | 820 | 385 | 1.90 | 2.12 | |
| 16 | 4.0 | 0.20 | 5.0 | 0.20 | 688 | BA822 | 688-2RS | 688-2RU | 1250 | 590 | 3.00 | 3.7 | |
| 19 | 6.0 | 0.30 | 6.0 | 0.30 | 698 | 698ZZ | 698-2RS | 698-2RU | 2240 | 905 | 7.18 | 7.2 | |
| 22 | 7.0 | 0.30 | 7.0 | 0.30 | 608 | 608ZZ | 608-2RS | 608-2RU | 3300 | 1360 | 12.00 | 12 | |
| 24 | 8.0 | 0.30 | 8.0 | 0.30 | 628 | 62822 | 628-2RS | B28-2RU | 3350 | 1410 | 17.00 | 17.3 | |
| 28 | 9.0 | 0.30 | 9.0 | 0.30 | 638 | 638ZZ | 638-2RS | 638-2RU | 4550 | 1970 | 27.00 | 28.6 | |
| 9 | 14 | 3.0 | 0.10 | 4.5 | 0.10 | 679 | 679ZZ | / | / | 930 | 470 | 1.35 | 1.98 |
| 17 | 4.0 | 0.20 | 5.0 | 0.20 | 689 | 689 ZZ | 689-2RS | 689-2RU | 1730 | 810 | 3.53 | 4.43 | |
| 20 | 6.0 | 0.30 | 6.0 | 0.30 | 699 | 699ZZ | 699-2RS | 699-2RU | 2120 | 985 | 8.33 | 8.45 | |
| 24 | 7.0 | 0.30 | 7.0 | 0.30 | 609 | 609ZZ | 609-2RS | 609-2RU | 3350 | 1410 | 14.50 | 14.6 | |
| 26 | 8.0 | 0.30 | 8.0 | 0.30 | 629 | 62922 | 629-2RS | 629-2RU | 4550 | 1970 | 19.50 | 20 | |
| 30 | 10 | 0.60 | 10 | 0.60 | 639 | 639ZZ | 639-2RS | 639-2RU | 5100 | 2390 | 34.00 | 36 | |
diametro 5~15 mm
| Dimensioni principali (mm) | Model | Cr(N) | Mais) | peso(g) | ||||||
| d | D | B | r | Aprire | Tappo in ferro | Tappo di contatto | Senza contatto | |||
| 10 | 15 | 3 | 0.1 | 6700 | 6700 ZZ | 6700-2RS | 6700-2RU | 1010 | 555 | 0.0015 |
| 19 | 5 | 0.3 | 6800 | 6800 Z | 6800-2RS | 6800-2RU | 1840 | 925 | 0.005 | |
| 19 | 7 | 0.3 | 63800 | 63800ZZ | 63800-2RS | 63800-2RU | 1840 | 925 | 0.0074 | |
| 22 | 6 | 0.3 | 6900 | 6900 ZZ | 6900-2RS | 6900-2RU | 2700 | 1270 | 0.009 | |
| 26 | 8 | 0.3 | 6000 | 6000 Z | 6000-2RS | 6000-2RU | 4550 | 1970 | 0.019 | |
| 26 | 12 | 0.5 | 63000 | / | 63000-2RS | / | 4620 | 1960 | 0.025 | |
| 28 | 8 | 0.3 | 16100 | / | / | / | 4620 | 1960 | 0.022 | |
| 30 | 9 | 0.6 | 6200 | 6200ZZ | 6200-2RS | 6200-2RU | 5100 | 2390 | 0.032 | |
| 30 | 14 | 1 | 62200 | / | 62200-2RS | / | 5070 | 2360 | 0.04 | |
| 30 | 14.3 | 1 | 63200 | / | 63200-2RS | / | 5146 | 2350 | 0.046 | |
| 35 | 11 | 0.6 | 6300 | 6300 ZZ | 6300-2RS | 6300-2RU | 8100 | 3450 | 0.053 | |
| 35 | 17 | 1 | 62300 | / | 62300-2RS | / | 8060 | 3400 | 0.06 | |
| 35 | 19.05 | 0.6 | 63300 | / | 63300-2RS | / | 8095 | 3565 | 0.105 | |
| 37 | 12 | 0.6 | 6400 | / | / | / | 9000 | 4650 | / | |
| 12 | 18 | 4 | 0.2 | 6701 | 6701ZZ | 6701-2RS | 6701-2RU | 1070 | 6555 | 0.003 |
| 21 | 5 | 0.3 | 6801 | 6801ZZ | 6801-2RS | 6801-2RU | 1900 | 1040 | 0.006 | |
| 21 | 7 | 0.3 | 63801 | 63801ZZ | 63801-2RS | 63801-2RU | 1900 | 1040 | 0.0085 | |
| 24 | 6 | 0.3 | 6901 | 6901ZZ | 6901-2RS | 6901-2RU | 2900 | 1460 | 0.011 | |
| 28 | 7 | 0.3 | 16001 | / | / | / | 5100 | 2400 | 0.024 | |
| 28 | 8 | 0.3 | 6001 | 6001ZZ | 6001-2RS | 6001-2RU | 5100 | 2390 | 0.023 | |
| 28 | 12 | 0.5 | 63001 | / | 63001-2RS | / | 5070 | 2360 | 0.029 | |
| 30 | 8 | 0.3 | 16101 | / | / | / | 5070 | 2360 | 0.023 | |
| 32 | 10 | 0.6 | 6201 | 6201ZZ | 6201-2RS | 6201-2RU | 6800 | 3050 | 0.037 | |
| 32 | 14 | 1 | 62201 | / | 62201-2RS | / | 6890 | 3100 | 0.046 | |
| 32 | 15.9 | 1 | 63201 | / | 63201-2RS | / | 7000 | 3050 | 0.055 | |
| 37 | 12 | 1 | 6301 | 6301ZZ | 6301-2RS | 6301-2RU | 9800 | 4250 | 0.06 | |
| 37 | 1700 | 1.5 | 62301 | / | 62301-2RS | / | 9750 | 4150 | 0.074 | |
| 37 | 1905 | 1 | 63301 | / | 63301-2RS | / | 9705 | 4360 | 0.114 | |
| 42 | 13 | 1 | 6401 | / | / | / | 11600 | 5150 | 0.048 | |
| 15 | 21 | 4 | 0.2 | 6702 | 6702ZZ | 6702-2RS | 6702-2RU | 1150 | 790 | 0.0035 |
| 24 | 5 | 0.3 | 6802 | 6802ZZ | 6802-2RS | 6802-2RU | 2080 | 1260 | 0.007 | |
| 24 | 7 | 0.3 | 63802 | 63802ZZ | 63802-2RS 63802-2RU | 2080 | 1260 | 0.01 | ||
| 28 | 7 | 0.3 | 6902 | 6902ZZ | 6902-2RS | 6902-2RU | 4300 | 2250 | 0.016 | |
| 32 | 8 | 0.3 | 16002 | / | / | / | 5600 | 2840 | 0.025 | |
| 32 | 9 | 0.3 | 6002 | 6002ZZ | 6002-2RS | 6002-2RU | 5600 | 2840 | 0.032 | |
| 32 | 13 | 0.5 | 63002 | / | 63002-2RS | / | 5590 | 2850 | 0.042 | |
| 35 | 11 | 0.6 | 6202 | 6202ZZ | 6202-2RS | 6202-2RU | 7650 | 3700 | 0.045 | |
| 35 | 14 | 1 | 62202 | / | 62202-2RS | / | 7800 | 3750 | 0.056 | |
| 35 | 15.9 | 1 | 63202 | / | 63202-2RS | / | 8000 | 3600 | 0.068 | |
| 42 | 13 | 1 | 6302 | 6302ZZ | 6302-2RS | 6302-2RU | 11400 | 5400 | 0.082 | |
| 42 | 17 | 1.5 | 62302 | / | 62302-2RS | / | 11400 | 5400 | 0.11 | |
| 42 | 19 | 1.5 | 63302 | / | 63302-2RS | / | 8232 | 4900 | 0.152 | |
| 52 | 15 | 1.1 | 6402 | / | / | / | 15900 | 7300 | 0.137 | |
diametro 17~35 mm
| Dimensioni principali (mm) | Model | Cr(N) | Mais) | peso(g) | ||||||
| d | D | B | r | Aprire | Tappo in ferro | Tappo di contatto | Senza contatto | |||
| 17 | 23 | 4 | 0.2 | 6703 | 6703ZZ | 6703-2RS | 6703-2RU | 1200 | 865 | 0.004 |
| 26 | 5 | 0.3 | 6803 | 6803ZZ | 6803-2RS | 6803-2RU | 2630 | 1570 | 0.008 | |
| 26 | 7 | 0.3 | 63803 | 63803ZZ | 63803-2RS | 63803-2RU | 2630 | 1570 | 0.011 | |
| 30 | 7 | 0.3 | 6903 | 6903ZZ | 6903-2RS | 6903-2RU | 4600 | 2550 | 0.018 | |
| 35 | 8 | 0.3 | 16003 | / | / | / | 6000 | 3250 | 0.032 | |
| 35 | 10 | 0.3 | 6003 | 6003ZZ | 6003-2RS | 6003-2RU | 6000 | 3250 | 0.039 | |
| 35 | 14 | 0.5 | 63003 | / | 63003-2RS | / | 6050 | 3250 | 0.051 | |
| 40 | 12 | 0.6 | 6203 | 6203ZZ | 6203-2RS | 6203-2RU | 9550 | 4800 | 0.065 | |
| 40 | 16 | 1 | 62203 | / | 62203-2RS | / | 9560 | 4750 | 0.085 | |
| 40 | 17.5 | 1 | 63203 | / | 63203-2RS | / | 9200 | 4500 | 0.09 | |
| 47 | 14 | 1 | 6303 | 6303ZZ | 6303-2RS | 6303-2RU | 13600 | 6550 | 0.115 | |
| 47 | 19 | 1.5 | 62303 | / | 62303-2RS | / | 13500 | 6550 | 0.149 | |
| 47 | 22.2 | 1.5 | 63303 | / | 63303-2RS | / | 9800 | 5684 | 0.176 | |
| 62 | 17 | 1.1 | 6403 | / | / | / | 22700 | 10800 | 0.271 | |
| 20 | 27 | 4 | 0.2 | 6704 | 6704ZZ | 6704-2RS | 6704-2RU | 1790 | 1320 | 0.005 |
| 32 | 7 | 0.3 | 6804 | 6804ZZ | 6804-2RS | 6804-2RU | 4000 | 2470 | 0.019 | |
| 32 | 10 | 0.3 | 63804 | 63804ZZ | 63804-2RS | 63804-2RU | 4000 | 2470 | 0.024 | |
| 37 | 9 | 0.3 | 6904 | 6904ZZ | 6904-2RS | 6904-2RU | 6350 | 3700 | 0.036 | |
| 42 | 8 | 0.3 | 16004 | / | / | / | 7900 | 4500 | 0.05 | |
| 42 | 12 | 0.6 | 6004 | 6004ZZ | 6004-2RS | 6004-2RU | 9400 | 5000 | 0.07 | |
| 42 | 16 | 1 | 63004 | / | 63004-2RS | / | 9360 | 5000 | 0.088 | |
| 47 | 14 | 1 | 6204 | / | 6204-2RS | / | 12800 | 6600 | 0.106 | |
| 47 | 18 | 1.5 | 62204 | 6204ZZ | 62204-2RS | 62204-2RU | 12700 | 6550 | 0.128 | |
| 47 | 20.6 | 1.5 | 63204 | / | 63204-2RS | / | 9800 | 6174 | 0.15 | |
| 52 | 15 | 1.1 | 6304 | / | 6304-2RS | / | 15900 | 7900 | 0.144 | |
| 52 | 21 | 2 | 62304 | 6304ZZ | 62304-2RS | 62304-2RU | 15900 | 7800 | 0.197 | |
| 52 | 22.2 | 2 | 63304 | / | 63304-2RS | / | 11466 | 7056 | 0.21 | |
| 72 | 19 | 1.1 | 6404 | / | 6404-2RS | / | 31000 | 15200 | 0.408 | |
| 22 | 44 | 12 | 0.6 | 60/22 | 60/22ZZ | 60/22-2RS | 60/22-2RU | 9400 | 5050 | 0.074 |
| 50 | 14 | 1 | 62/22 | 62/22ZZ | 62/22-2RS | 62/22-2RU | 13900 | 6950 | 0.12 | |
| 56 | 16 | 1.1 | 63/22 | 63/22ZZ | 63/22-2RS | 63/22-2RU | 18400 | 9250 | 0.176 | |
| 25 | 32 | 4 | 0.2 | 6705 | 6705ZZ | 6705-2RS | 6705-2RU | 1930 | 1550 | 0.006 |
| 37 | 7 | 0.3 | 6805 | 6805ZZ | 6805-2RS | 6805-2RU | 4300 | 2950 | 0.022 | |
| 37 | 10 | 0.3 | 63805 | 63805ZZ | 63805-2RS | 63805-2RU | 4300 | 2950 | 0.032 | |
| 42 | 9 | 0.3 | 6905 | 6905ZZ | 6905-2RS | 6905-2RU | 7000 | 4500 | 0.041 | |
| 47 | 8 | 0.3 | 16005 | / | / | / | 6950 | 5650 | 0.06 | |
| 47 | 12 | 0.6 | 6005 | 6005ZZ | 6005-2RS | 6005-2RU | 10100 | 5850 | 0.079 | |
| 47 | 16 | 1 | 63005 | / | 63005-2RS | / | 11200 | 6550 | 0.1 | |
| 52 | 15 | 1 | 6205 | 6205ZZ | 6205-2RS | 6205-2RU | 14000 | 7900 | 0.128 | |
| 52 | 18 | 1.5 | 62205 | / | 62205-2RS | / | 14000 | 7800 | 0.146 | |
| 52 | 20.6 | 1.5 | 63205 | / | 63205-2RS | / | 10584 | 6860 | 0.175 | |
| 62 | 17 | 1.1 | 6305 | 6305ZZ | 6305-2RS | 6305-2RU | 23600 | 12100 | 0.232 | |
| 62 | 24 | 2 | 62305 | / | 62305-2RS | / | 22500 | 11600 | 0.32 | |
| 62 | 25.4 | 2 | 63305 | / | 63305-2RS | / | 14700 | 9800 | 0.315 | |
| 80 | 21 | 1.5 | 6405 | / | / | / | 40000 | 20100 | 0.528 | |
diametro 17~35 mm
| Dimensioni principali (mm) | Model | Cr(N) | Mais) | peso(g) | ||||||
| d | D | B | r | Aprire | Tappo in ferro | Tappo di contatto | Senza contatto | |||
| 28 | 52 | 12 | 0.6 | 60/28 | 60/28ZZ | 60/28-2RS | 6028-2RU | 12500 | 7400 | 0.098 |
| 58 | 16 | 1 | 62/28 | 62/28ZZ | 62/28-2RS | 62/28-2RU | 17900 | 9750 | 0.175 | |
| 68 | 16 | 1.1 | 63/28 | 63/28ZZ | 63/28-2RS | 63/28-2RU | 26800 | 14000 | 0.287 | |
| 30 | 37 | 4 | 0.2 | 6706 | 6706ZZ | 6706-2HS | 6706-2RU | 2050 | 1780 | 0.008 |
| 42 | 7 | 0.3 | 6806 | 6805ZZ | 6806-2RS | 6806-2RU | 4500 | 3400 | 0.0026 | |
| 42 | 10 | 0.3 | 63806 | 63806ZZ | 63806-2HS | 63806-2RU | 4500 | 3400 | 0.026 | |
| 47 | 9 | 0.3 | 6906 | 6906ZZ | 6906-2HS | 6906-2RU | 7250 | 5000 | 0.045 | |
| 55 | 9 | 0.3 | 16006 | / | / | / | 9950 | 6550 | 0.085 | |
| 55 | 13 | 1 | 6006 | 6006ZZ | 6006-2RS | 6006-2RU | 13200 | 8300 | 0.117 | |
| 55 | 19 | 1.5 | 63006 | / | 63006-2RS | / | 13300 | 8300 | 0.159 | |
| 62 | 16 | 1 | 6006 | 6706ZZ | 6206-2RS | 6206-2RU | 19500 | 11300 | 0.199 | |
| 62 | 20 | 1.5 | 62206 | / | 62206-2RS | / | 19500 | 11200 | 0.242 | |
| 62 | 23.8 | 1.5 | 63206 | / | 63206-2RS | / | 14700 | 9800 | 0.28 | |
| 72 | 19 | 1.1 | 6306 | 6306ZZ | 6306-2RS | 6306-2RU | 26700 | 15000 | 0.346 | |
| 72 | 27 | 2 | 62306 | / | 62306-2RS | / | 28100 | 16000 | 0.485 | |
| 72 | 30.2 | 2 | 63306 | / | 63306-2RS | / | 19600 | 13426 | 0.53 | |
| 90 | 23 | 1.5 | 6460 | / | / | / | 43500 | 23800 | 0.72 | |
| 32 | 58 | 13 | 1 | 60/32 | 60/32ZZ | 60/32-2RS | 60/32-2RU | 15100 | 9150 | 0.129 |
| 65 | 17 | 1 | 62/32 | 62/32ZZ | 62/32-2RS | 62/32-2RU | 22400 | 13100 | 0.23 | |
| 75 | 20 | 1.1 | 63/32 | 63/32ZZ | 63/32-2RS | 63/32-2RU | 30000 | 16200 | 0.382 | |
| 35 | 44 | 5 | 0.3 | 6707 | 6707ZZ | 6707-2RS | 6707-2RU | 1862 | 1637 | 0.15 |
| 47 | 7 | 0.3 | 6807 | 6807ZZ | 6807-2RS | 6807-2RU | 4900 | 4000 | 0.029 | |
| 55 | 10 | 0.6 | 6907 | 6907ZZ | 6907-2RS | 69C7-2RU | 10400 | 7150 | 0.073 | |
| 62 | 9 | 0.3 | 16007 | / | / | / | 11700 | 8150 | 0.11 | |
| 62 | 14 | 1 | 6007 | 6007ZZ | 6007-2RS | 6007-2RU | 16000 | 10300 | 0.156 | |
| 62 | 20 | 1.5 | 63007 | 63007-2RS | / | 15900 | 10200 | 0.21 | ||
| 72 | 17 | 1.1 | 6207 | 6207ZZ | 6207-2RS | 6207-2RU | 25700 | 15300 | 0.28 | |
| 72 | 23 | 2 | 62207 | / | 62207-2RS | / | 25500 | 15300 | 0.435 | |
| 72 | 27 | 2 | 63207 | / | 63207-2RS | / | 19404 | 12740 | 0.435 | |
| 80 | 21 | 1.5 | 6307 | 6307ZZ | 6307-2RS | 6307-2RU | 33500 | 19100 | 0.457 | |
| 80 | 31 | 2.5 | 62307 | / | 62307-2RS | / | 33200 | 19000 | 0.67 | |
| 80 | 34.9 | 2.5 | 63307 | / | 63307-2RS | / | 23520 | 16170 | 0.71 | |
| 100 | 25 | 1.5 | 6407 | / | / | / | 55000 | 31000 | 0.936 | |
diametro 40~70 mm
| Dimensioni principali (mm) | Model | Cr(N) | Mais) | peso(g) | ||||||
| d | D | B | r | Aprire | Tappo in ferro | Tappo di contatto | Senza contatto | |||
| 40 | 50 | 6 | 0.3 | 6708 | 6708ZZ | 6708-2RS | 6708-2RU | 2519 | 2234 | 0.023 |
| 52 | 7 | 0.3 | 6808 | 6808ZZ | 6808-2RS | 6808-2RU | 5050 | 4350 | 0.033 | |
| 62 | 12 | 0.6 | 6908 | 6908ZZ | 6908-2RS | 6908-2RU | 13700 | 9900 | 0.109 | |
| 68 | 9 | 0.3 | 16008 | / | / | 11100 | 8550 | 0.125 | ||
| 68 | 15 | 1 | 6008 | 6008ZZ | 6008-2RS | 6008-2RU | 16800 | 11500 | 0.194 | |
| 68 | 21 | 1.5 | 63008 | / | 63008-2RS | / | 16800 | 11600 | 0.259 | |
| 80 | 18 | 1.1 | 6208 | 6208ZZ | 6208-2RS | 6208-2RU | 29100 | 17900 | 0.366 | |
| 80 | 23 | 2 | 62208 | / | 62208-2RS | / | 30700 | 19000 | 0.45 | |
| 80 | 30.2 | 2 | 63208 | / | 63208-2RS | / | 20580 | 14210 | 0.435 | |
| 90 | 23 | 1.5 | 6308 | 6308ZZ | 6308-2RS | 6308-2RU | 40500 | 24100 | 0.633 | |
| 90 | 33 | 2.5 | 62308 | / | 62308-2RS | / | 41000 | 24000 | 0.91 | |
| 90 | 36.5 | 2.5 | 63308 | / | 63308-2RS | / | 29400 | 20482 | 1.02 | |
| 110 | 27 | 2 | 6408 | / | / | 63500 | 36500 | 1.2 | ||
| 45 | 55 | 6 | 0.3 | 6709 | 6709ZZ | 6709-2RS | 6709-2RU | 2577 | 2401 | 0.025 |
| 58 | 7 | 0.3 | 6809 | 6809ZZ | 6809-2RS | 6809-2RU | 6400 | 5500 | 0.04 | |
| 68 | 12 | 0.6 | 6909 | 6909ZZ | 6909-2RS | 6909-2RU | 14100 | 10900 | 0.122 | |
| 75 | 10 | 0.6 | 16009 | / | / | / | 12900 | 10500 | 0.17 | |
| 75 | 16 | 1 | 6009 | 6009ZZ | 6009-2RS | 6009-2RU | 21000 | 15200 | 0.246 | |
| 75 | 23 | 1.5 | 63009 | / | 63009-2RS | / | 20800 | 14600 | 0.345 | |
| 85.0 | 19 | 1.1 | 6209 | 6209ZZ | 6209-2RS | 6209-2RU | 32500 | 20500 | 0.407 | |
| 85.0 | 23 | 2 | 62209 | / | 62209-2RS | / | 33200 | 21600 | 0.485 | |
| 85.0 | 30.2 | 2 | 63209 | / | 63209-2RS | / | 22540 | 15680 | 0.64 | |
| 100.0 | 25 | 1.5 | 6309 | 6309ZZ | 6309-2RS | 6309-2RU | 53000 | 32000 | 0.833 | |
| 100.0 | 36 | 2.5 | 62309 | / | 62309-2RS | / | 52700 | 31500 | 1.19 | |
| 100.0 | 39.7 | 2.5 | 63309 | / | 63309-2RS | / | 37240 | 27440 | 1.3 | |
| 120.0 | 29 | 2 | 6409 | / | / | 77500 | 45000 | 1.55 | ||
| 50 | 62.0 | 6 | 0.3 | 6710 | 6710ZZ | 6710-2RS | 6710-2RU | 2666 | 2636 | 0.064 |
| 65.0 | 7 | 0.3 | 6810 | 6810ZZ | 6810-2RS | 6810-2RU | 6600 | 6050 | 0.052 | |
| 72.0 | 12 | 0.6 | 6910 | 6910ZZ | 6910-2RS | 6910-2RU | 14500 | 11700 | 0.127 | |
| 80.0 | 10 | 0.6 | 16010 | / | / | / | 16100 | 13100 | 0.18 | |
| 80.0 | 16 | 1 | 6010 | 6010ZZ | 6010-2RS | 6010-2RU | 21800 | 16600 | 0.264 | |
| 80.0 | 23 | 1.5 | 63010 | / | 63010-2RS | / | 21600 | 16000 | 0.37 | |
| 90.0 | 20 | 1.1 | 6210 | 6210ZZ | 6210-2RS | 6210-2RU | 35000 | 23200 | 0.463 | |
| 90.0 | 23 | 2 | 62210 | / | 62210-2RS | / | 35100 | 23200 | 0.535 | |
| 90.0 | 30.2 | 2 | 63210 | / | 63210-2RS | / | 24500 | 18130 | 0.675 | |
| 110.0 | 27 | 2 | 6310 | 6310ZZ | 6310-2RS | 6310-2RU | 62000 | 38100 | 1.07 | |
| 110.0 | 40 | 2 | 62310 | / | 62310-2RS | / | 61800 | 38000 | 1.55 | |
| 130.0 | 31 | 2.1 | 6410 | / | / | / | 87500 | 52000 | 1.91 | |
diametro 40~70 mm
| Dimensioni principali (mm) | Model | Cr(N) | Mais) | peso (g) | ||||||
| d | D | B | r | Aprire | Tappo in ferro | Tappo di contatto | Senza contatto | |||
| 55 | 68 | 7 | 0.3 | 6711 | / | / | / | 4850 | 5060 | 0.055 |
| 72 | 9 | 0.3 | 6811 | 6811ZZ | 6811-2RS | 6811-2RU | 9100 | 8450 | 0.083 | |
| 80 | 13 | 1 | 6911 | 6911ZZ | 6911-2RS | 6911-2RU | 16000 | 13200 | 0.177 | |
| 90 | 11 | 0.6 | 16011 | / | / | / | 15000 | 13500 | 0.26 | |
| 90 | 18 | 1.1 | 6011 | 6011ZZ | 6011-2RS | 6011-2RU | 28300 | 21300 | 0.384 | |
| 100.0 | 21 | 1.5 | 6211 | 6211ZZ | 6211-2RS | 6211-2RU | 43500 | 29300 | 0.607 | |
| 100.0 | 25 | 1.5 | 62211 | / | 62211-2BS | / | 43600 | 29000 | 0.7 | |
| 120.0 | 29 | 2 | 6311 | 6311ZZ | 6311-2RS | 6311-2RU | 71500 | 44500 | 1.37 | |
| 120.0 | 43 | 2 | 62311 | / | 62311-2RS | / | 71500 | 45000 | 1.95 | |
| 140.0 | 33 | 2.1 | 6411 | / | / | / | 101000 | 62000 | 2.32 | |
| 60 | 75 | 7 | 0.3 | 6712 | / | / | / | 5900 | 6325 | 0.07 |
| 78 | 10 | 0.3 | 6812 | 6812ZZ | 6812-2RS | 6812-2RU | 11500 | 10600 | 0.106 | |
| 85 | 13 | 1 | 6912 | 6912ZZ | 6912-2RS | 6912-2RU | 19400 | 16200 | 0.191 | |
| 95 | 11 | 0.6 | 16012 | / | / | / | 16200 | 14300 | 0.28 | |
| 95 | 18 | 1.1 | 6012 | 6012ZZ | 6012-2RS | 6012-2RU | 29500 | 23200 | 0.418 | |
| 110.0 | 22 | 1.5 | 6212 | 6212ZZ | 6212-2RS | 6212-2RU | 52500 | 36000 | 0.783 | |
| 110.0 | 28 | 1.5 | 62212 | / | 62212-2BS | / | 47500 | 32500 | 0.97 | |
| 130.0 | 31 | 2 | 6312 | 6312ZZ | 6312-2RS | 6312-2RU | 82000 | 52000 | 1.7 | |
| 130.0 | 46 | 2 | 62312 | / | 62312-2RS | / | 81900 | 52000 | 2.5 | |
| 130.0 | 35 | 2.1 | 6412 | / | / | / | 109000 | 70000 | 2.79 | |
| 65 | 85 | 10 | 0.6 | 6813 | 6813ZZ | 6813-2RS | 6813-2RU | 12000 | 11500 | 0.125 |
| 90 | 13 | 1 | 6913 | 6913ZZ | 6913-2RS | 6913-2RU | 17400 | 16000 | 0.2 | |
| 100.0 | 11 | 0.6 | 16013 | / | / | / | 20500 | 18600 | 0.3 | |
| 100.0 | 18 | 1.1 | 6013 | 6013ZZ | 6013-2RS | 6013-2RU | 30500 | 25200 | 0.438 | |
| 120.0 | 23 | 1.5 | 6213 | 6213ZZ | 6213-2BS | 6213-2RU | 57000 | 40000 | 0.99 | |
| 120.0 | 31 | 1.5 | 62213 | / | 62213-2RS | / | 55900 | 40500 | 1.25 | |
| 140.0 | 33 | 2.1 | 6313 | 6313ZZ | 6313-2RS | 6313-2RU | 92500 | 59500 | 2.08 | |
| 140.0 | 48 | 2 | 62313 | / | 62313-2RS | / | 92300 | 60000 | 3 | |
| 160.0 | 37 | 2.1 | 6413 | / | / | / | 118000 | 78500 | 3.36 | |
| 70 | 85 | 7 | 0.3 | 6714 | / | / | / | 6100 | 7015 | 0.08 |
| 90 | 10 | 0.6 | 6814 | 6814ZZ | 6814-2RS | 6814-2RU | 12100 | 11900 | 0.135 | |
| 100.0 | 16 | 1 | 6914 | 6914ZZ | 6914-2RS | 6914-2RU | 23500 | 21100 | 0.327 | |
| 110.0 | 13 | 0.6 | 16014 | / | / | / | 26800 | 23600 | 0.433 | |
| 110.0 | 20 | 1.1 | 6014 | 6014ZZ | 6014-2RS | 6014-2RU | 38000 | 31000 | 0.607 | |
| 125.0 | 24 | 1.5 | 6214 | 6214ZZ | 6214-2RS | 6214-2RU | 62000 | 44000 | 1.07 | |
| 125.0 | 31 | 1.5 | 62214 | / | 62214-2RS | / | 60500 | 45000 | 1.3 | |
| 150.0 | 35 | 2.1 | 6314 | 6314ZZ | 6314-2RS | 6314-2RU | 104000 | 68000 | 2.52 | |
| 150.0 | 51 | 2 | 62314 | / | 62314-2RS | / | 104000 | 68000 | 3.55 | |
| 180.0 | 42:00 | 3 | 6414 | / | / | / | 145000 | 105000 | 5 | |
Cuscinetti a doppia corona di sfere sono ampiamente utilizzati in motori, apparecchiature meccaniche, ventilatori, parti automobilistiche e altre applicazioni perché possono sopportare contem...
PER SAPERNE DI PIÙCuscinetti a sfere a doppia fila sono ampiamente utilizzati in varie apparecchiature meccaniche grazie alla loro elevata capacità di carico e prestazioni stabili e sono ampiamente utilizzati ...
PER SAPERNE DI PIÙCome abbinare i parametri di carico per evitare cedimenti prematuri dei cuscinetti? La durabilità di cuscinetti a sfere a contatto obliquo a doppia corona nei sistemi di trasmissione...
PER SAPERNE DI PIÙCome componente fondamentale delle apparecchiature meccaniche, cuscinetti a doppia corona di sfere svolgono un ruolo fondamentale nel garantire un funzionamento stabile, soprattutto in scena...
PER SAPERNE DI PIÙEssendo i componenti principali delle apparecchiature meccaniche, le prestazioni e la qualità dei cuscinetti sono direttamente correlate all'efficienza operativa e alla stabilità dell'intero sistema. Ningbo Wanshun Bearing Co., Ltd., in qualità di leader nel settore dei cuscinetti in Cina, ha ottenuto ampio riconoscimento e fiducia nei mercati nazionali ed esteri grazie alla sua eccellente tecnologia di produzione, alla rigorosa gestione della qualità e alle ricche linee di prodotti, soprattutto nel campo della scanalatura profonda cuscinetti a sfera.
Cuscinetti a sfere a gola profonda , con la loro struttura semplice, elevata capacità di carico e basso attrito, sono ampiamente utilizzati in vari tipi di apparecchiature meccaniche e sono diventati una parte indispensabile del sistema di trasmissione. Ningbo Wanshun Bearing Co., Ltd. è ben consapevole dell'importanza dei cuscinetti a sfere a gola profonda, quindi si impegna a produrre cuscinetti a sfere a gola profonda di alta qualità e alta precisione per soddisfare i severi requisiti di diversi settori per i sistemi di trasmissione.
Nella matrice dei prodotti di Ningbo Wanshun, i cuscinetti a sfere a gola profonda delle serie 42 e 43 sono diventati la prima scelta di molti clienti grazie alle loro eccellenti prestazioni e alla qualità affidabile. Queste due serie di prodotti non solo soddisfano gli standard generali internazionali, ma controllano anche rigorosamente la selezione dei materiali, il controllo del processo, l'ispezione di qualità e altri aspetti per garantire che ciascun set di cuscinetti possa funzionare stabilmente in condizioni di lavoro complesse e mutevoli. Allo stesso tempo, per soddisfare le esigenze personalizzate dei diversi clienti, Ningbo Wanshun fornisce anche cuscinetti a sfere a gola profonda serie 42 e 43 con varie specifiche e configurazioni per garantire che i prodotti possano essere ampiamente utilizzati in automobili, motori, macchine agricole, macchine utensili e altri campi.
Essendo un'azienda focalizzata sulla produzione di cuscinetti di alta qualità, Ningbo Wanshun ha sempre considerato l'innovazione tecnologica come la forza trainante principale per lo sviluppo dell'azienda. Nel processo di produzione dei cuscinetti a sfere a gola profonda, l'azienda introduce continuamente attrezzature e tecnologie di produzione avanzate, ottimizza il processo di produzione e migliora l'efficienza produttiva e la qualità del prodotto. Allo stesso tempo, l'azienda ha anche creato un sistema completo di ricerca e sviluppo, collabora attivamente con rinomate università nazionali e straniere e istituti di ricerca scientifica per superare congiuntamente le difficoltà tecniche e promuovere il progresso tecnologico nel settore dei cuscinetti a sfere a gola profonda.
La qualità è l'ancora di salvezza di Ningbo Wanshun. L'azienda considera sempre "la soddisfazione del cliente al centro" come concetto fondamentale della gestione della qualità, implementa rigorosamente gli standard del sistema di gestione della qualità ISO9001 e controlla rigorosamente tutti i collegamenti come l'approvvigionamento delle materie prime, la produzione e la lavorazione e l'ispezione del prodotto finito. L'azienda è inoltre dotata di apparecchiature di prova avanzate e di un team di test professionale per condurre test completi di vari indicatori di prestazione del prodotto per garantire che ciascun set di cuscinetti a sfere a gola profonda possa soddisfare o addirittura superare gli standard del settore. È questa persistente ricerca della qualità che ha fatto guadagnare ai cuscinetti a sfere a gola profonda di Ningbo Wanshun una buona reputazione e un ampio riconoscimento sul mercato.
Guardando al futuro, Ningbo Wanshun Bearing Co., Ltd. continuerà a sostenere la filosofia aziendale di "fare amicizia prima di fare affari, vantaggio reciproco e sviluppo comune" e porterà avanti una cooperazione ampia e approfondita con amici di ogni ceto sociale. vivere in patria e all’estero con una mente più aperta e azioni più pragmatiche. L’azienda crede fermamente che, attraverso sforzi e innovazioni continui, contribuirà allo sviluppo della produzione industriale nel mio paese e persino nel mondo. Allo stesso tempo, l'azienda non vede l'ora di lavorare fianco a fianco con partner che la pensano allo stesso modo per creare insieme un futuro migliore.
